M74D Double Seals

Type ：	M74D
Temperature：	-20℃~180℃
Technical parameters：	Yes
Pressure force：	≤1.0 mPa
Line rate：	≤10 m/s
Materials：	Mating ring: Ceramic/SIC/TC Rotary ring: Carbon/SIC/TC Bellows: NBR/EPDM/Viton

Order Hotline：0086-512-58728158

M74D Double Seals

Operatio conditions

Temperature	-20℃~180℃
Pressure	≤1.0 mPa
Speed	≤10 m/s
Materials	Mating ring: Ceramic/SIC/TC Rotary ring: Carbon/SIC/TC Bellows: NBR/EPDM/Viton Metal parts: SS304/SS316 Bellows: AM350/Inconel718

M74D Double Seals：

Multi-spring balanced double mechanical seal independent from direction of rotation. Double seal shows exellent perfrmance in media that do not have lubricating effect, in toxic, flammable and explosive media. Sealing fluid system provides seal lubrication, its cooling and prevents precipitation on friction surfaces, thus increasing its efficience and life time.
Analog to the following types of mechanical seals: Burgmann M74D, Anga VD

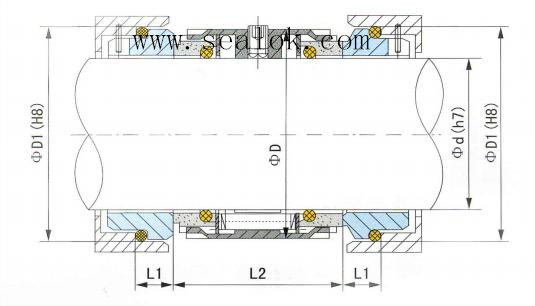

Model	d	D	D1	L1	L2
M74D-18	18	33	33	11.5	38
M74D-20	20	35	35	11.5	38
M74D-22	22	37	37	11.5	38
M74D-24	24	39	39	11.5	38
M74D-25	25	40	40	11.5	38
M74D-28	28	43	43	11.5	39
M74D-30	30	45	45	11.5	39
M74D-32	32	47	47	11.5	39
M74D-33	33	48	48	11.5	39
M74D-35	35	50	50	11.5	39
M74D-38	38	55	56	14	41
M74D-40	40	57	58	14	42
M74D-43	43	60	61	14	42
M74D-45	45	62	63	14	42
M74D-48	48	65	66	14	42
M74D-50	50	67	70	15	43
M74D-53	53	70	73	15	43
M74D-55	55	72	75	15	43
M74D-58	58	79	78	15	56
M74D-60	60	81	80	15	56
M74D-63	63	84	83	15	55
M74D-65	65	86	85	15	55
M74D-68	68	89	90	18	55
M74D-70	70	91	92	18	56
M74D-75	75	99	97	18	56
M74D-80	80	104	105	18.2	56
M74D-85	85	109	110	18.2	56
M74D-90	90	114	115	18.2	56
M74D-95	95	119	120	17.2	56
M74D-100	100	124	125	17.2	56
