SLK606 Metal Bellows Seal
| Type ： |
SLK606 |
| Temperature： |
-75℃～+425℃ |
| Technical parameters： |
Yes |
| Pressure force： |
≤2MPa |
| Line rate： |
≤25m/s |
| Materials： |
Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Secondary Seal (Flexible Carbon) |
Order Hotline：0086-512-58728158

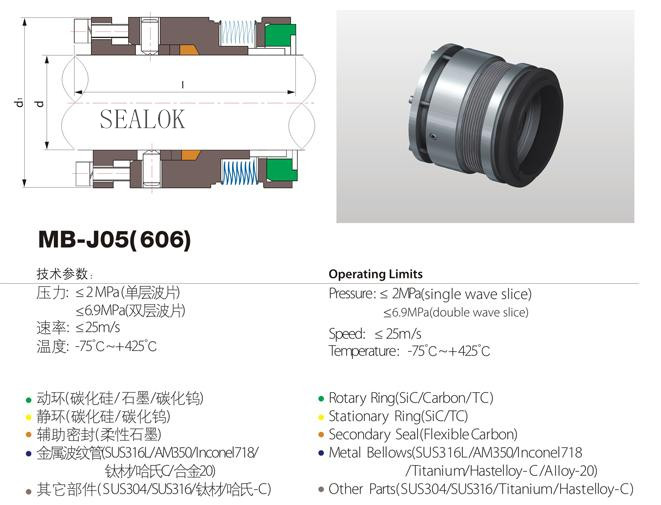

SLK 606 Metal Bellows Seal(replace John crane 606 )
Operating Limits:
Pressure: ≤2MPa (single ply bellow)
≤6.9MPa (double ply bellow）
Speed: ≤25m/s
Temperature: -75℃~+425℃
Rotary Ring (SiC/Carbon/TC)
Stationary Ring (SiC/TC)
Secondary Seal (Flexible Carbon)
Metal Bellows (SUS316L/AM350/Incone1718/Titanium/Hastelloy-C/AIIoy-20)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
