SLKBX Metal Bellows Seal

Type ：	SLKBX
Temperature：	-30℃～+204℃
Technical parameters：	Yes
Pressure force：	≤2.7MPa
Line rate：	≤23m/s
Materials：	Rotary Ring (SIC/Carbon/TC) Stationary Ring (SiC /TC) Secondary Seal (VITON/Encapsulated Ring/PTFE)

Order Hotline：0086-512-58728158

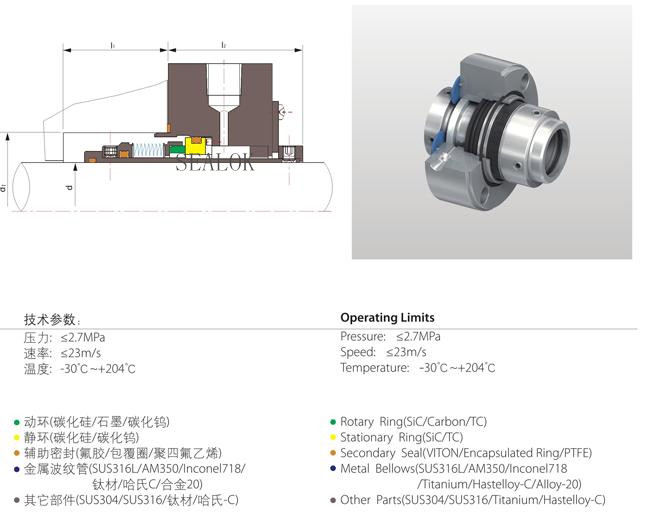

SLKBX Metal Bellows Seal(replace FLOWSERVE BX )

Operating Limits :

Pressurel≤2.7MPa

Speed:≤23m/s

Temperature:-30℃~+204℃

Rotary Ring (SIC/Carbon/TC)

Stationary Ring (SiC /TC)

Secondary Seal (VITON/Encapsulated Ring/PTFE)

Metal Bellows (SUS316/AM350/Inconel718/Titanium/Hastelloy-C/Alloy-20)

Other Parts (SUS304/SUS316/Tltanlum/Hastelloy-C)
