Metal Bellows Seal 您的位置：Home>>Products>>Metal Bellows Seal

SLK286 Metal Bellows Seal

Type ：	SLK286
Temperature：	-30℃～+204℃
Technical parameters：	Yes
Pressure force：	≤2MPa
Line rate：	≤20m/Sec Rotary Ring (SiC /Carbon/TC) Stationary Ring (SiC /TC)
Materials：	Secondary Seal (VITON/Encapsulated Ring/PTFE)

Order Hotline：0086-512-58728158

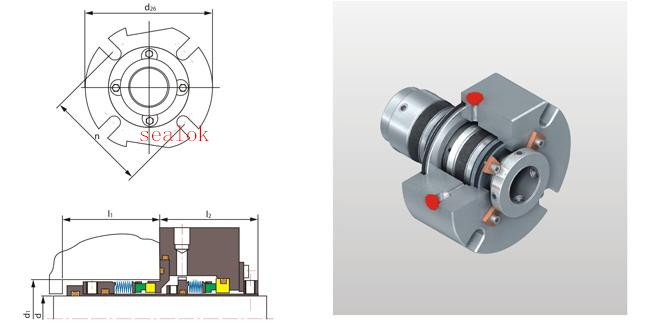

SLK286 Metal Bellows Seal(replace CHESTERTON 286 )

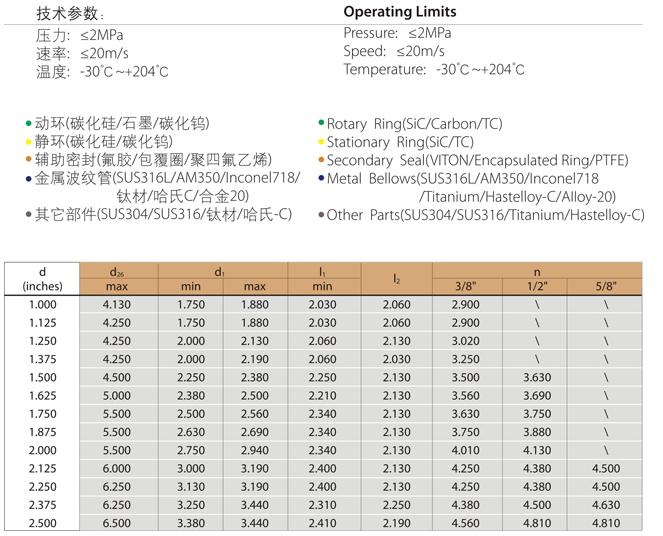

Operating Limits:

Pressure: ≤2MPa

Speed: ≤20m/s

Temperature: -30℃~+204℃

Rotary Ring (SiC /Carbon/TC)

Stationary Ring (SiC /TC)

Secondary Seal (VITON/Encapsulated Ring/PTFE)

Metal Bellows (SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/Alloy-20)

Other Parts (SUS304/SUS316/Tltanlum/Hastelloy-C)

SLK286 Metal Bellows Seal(replace CHESTERTON 286 )
