SLK 560D Single-Spring Mechanical Seal

Type ：	SLK560D
Temperature：	T: -30℃～+200℃
Technical parameters：	Yes
Pressure force：	P≤0.3MPa
Line rate：	Vg≤10m/s
Materials：	Rotary Ring(Plastic Carbon/Carbon/Sic/TC) Stationary Ring(Ceramic/Sic/Tc) Secondary Ring(nbr/Epdm/VITON)

Order Hotline：0086-512-58728158

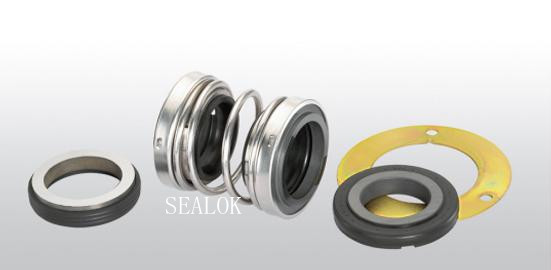

SLK560D 560D Single-Spring Mechanical Seal
Replace AESSEAL (replace NOK EAGLE ED560)

Operating Limits：

Pressure: ≤0.3MPa

Speed: ≤10 m/s

Temperature: -30℃～+200℃

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)

Stationary Ring(Ceramic/Sic/Tc)

Secondary Ring(nbr/Epdm/VITON)

Spring and Other Parts(Sus304/Sus316)
