SLK 580B Single-Spring Mechanical Seal

Type ：	SLK 580B
Temperature：	T: -30℃～+200℃
Technical parameters：	Yes
Pressure force：	P≤2.8MPa
Line rate：	Vg≤13m/s
Materials：	Rotary Ring(Carbon/Sic/tc) Stationary Ring(Ceramic/Sic/Tc/SUS304) Secondary Ring(nbr/Epdm/VITON)

Order Hotline：0086-512-58728158

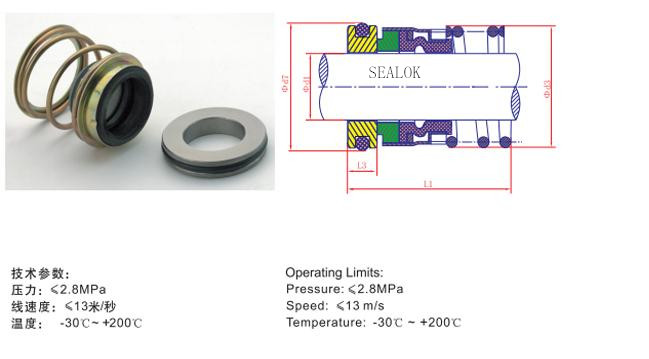

SLK 580B Single-Spring Mechanical Seal
Replace AESSEAL (replace CRANE 1（EURO）)

Operating Limits：

Pressure: ≤2.8MPa

Speed: ≤13 m/s

Temperature: -30℃～+200℃

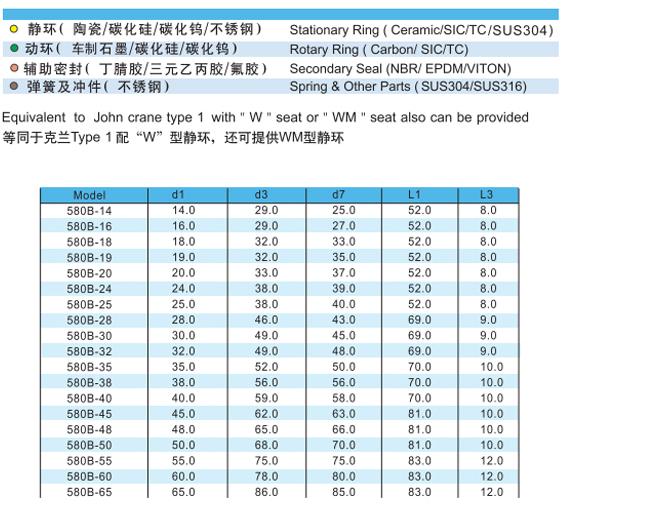

Rotary Ring(Carbon/Sic/tc)

Stationary Ring(Ceramic/Sic/Tc/SUS304)

Secondary Ring(nbr/Epdm/VITON)

Spring & Other Parts(Sus304/Sus316)
