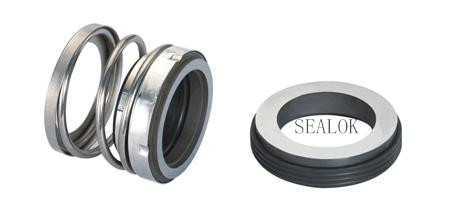

SLK560A Single-Spring Mechanical Seal

Type ：	SLK560A
Temperature：	T: -30℃～+200℃
Technical parameters：	Yes
Pressure force：	P≤1MPa
Line rate：	Vg≤12m/s
Materials：	Rotary Ring(Plastic Carbon/Carbon/Sic/tc) Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON)

Order Hotline：0086-512-58728158

SLK560A Single-Spring Mechanical Seal
Replace AESSEAL (replace MTU FP/T3S and NOK EAGLE EA560)

Operating Limits：

Pressure: ≤1MPa

Speed: ≤12 m/s

Temperature: -30℃～+200℃

Rotary Ring(Plastic Carbon/Carbon/Sic/tc)

Stationary Ring(Ceramic/Sic/Tc)

Secondary Seal(nbr/Epdm/VITON)

Spring & Other Parts(Sus304/Sus316)

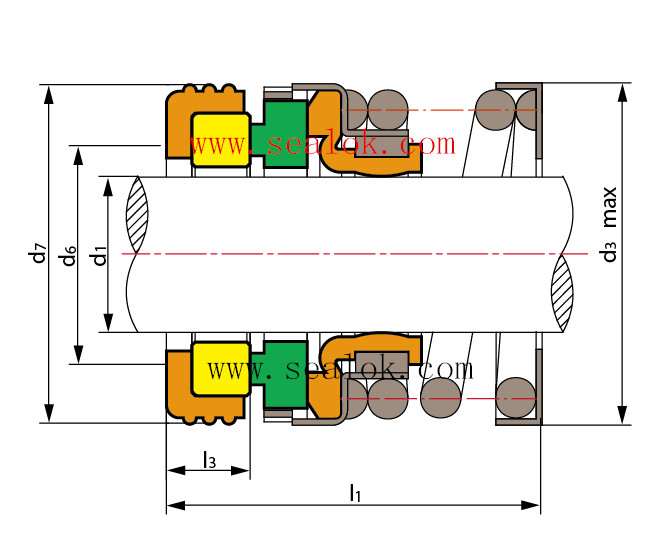

Model	d₁ (mm)	d₃	d₆	d₇	l₁	l₃
560A-10	10	23.5	16	24	25	7
560A-11	11	23.5	16	24	25	7
560A-12	12	26	17	26	25	7
560A-14	14	28	21	28	25.5	7
560A-15	15	30	21	28	29.5	7
560A-16	16	32	22	32	33.5	10
560A-18	18	32.5	25	35	36.5	10
560A-19	19	32.5	25	35	36.5	10
560A-20	20	35.5	27	38	38	10
560A-22	22	37.5	29	40	40.3	10
560A-25	25	42	32	44	39.3	10
560A-28	28	47	34	46	40	10
560A-30S	30	46	35	45	38.2	7.5
560A-30L	30	48	38	50	40	10
560A-32	32	50	40	54	40	10
560A-35	35	54.5	44	58	42	10
560A-38	38	58.5	46	60	42.6	10
560A-40	40	62.5	48	64	42.6	10
560A-45	45	66.5	52	66	45	10
560A-50	50	72.5	58	72	54.6	11.5
560A-55S	55	72	60	75	59.4	12

Model	d₁ (mm)	d₃	d₆	d₇	l₁	l₃
560A-10	10	23.5	16	24	25	7
560A-11	11	23.5	16	24	25	7
560A-12	12	26	17	26	25	7
560A-14	14	28	21	28	25.5	7
Model	d₁(inches)	d₃	d₆	d₇	l₁	l₃
560A-3/8"	9.525	23.5	14.3	22.23	28.6	7.9
560A-1/2"	12.7	26	17.5	25.4	28.6	7.9
560A-5/8"	15.875	30	20.6	31.75	32.5	10.3
560A-3/4"	19.05	32.5	23.8	34.93	32.5	10.3
560A-7/8"	22.225	37.5	27	38.1	34.1	10.3
560A-1"	25.4	44	30.2	41.28	36.5	11.1
560A-1 1/8"	28.575	48	33.3	44.45	38.1	11.1
560A-1 1/4"	31.75	50	36.5	47.63	38.1	11.1
560A-1 3/8"	34.925	54.5	39.7	50.8	39.7	11.1
560A-1 1/2"	38.1	58.5	42.9	53.98	39.7	11.1
560A-1 5/8"	41.275	64	46	60.33	47.6	12.7
560A-1 3/4"	44.45	67	49.2	63.5	47.6	12.7
560A-1 7/8"	47.625	71	52.4	66.68	50.8	12.7
560A-2"	50.8	73.5	55.6	69.85	50.8	12.7
560A-2 1/8"	53.975	75.6	\	76.2	57.2	14.3
560A-2 1/4"	57.15	80	65	79.38	57.2	14.3
560A-2 3/8"	60.325	79.6	\	82.55	57.2	14.3
560A-2 1/2"	63.5	84.9	70	85.73	60.3	14.3
560A-2 5/8"	66.675	84.6	\	85.725	65.1	15.9
560A-2 3/4"	69.85	93	\	88.9	65.1	15.9
560A-3"	76.2	102	\	98.425	68.3	15.9
