GLF GRUNDFOS-PUMP Seal
Our Mechanical seal model CR is widely used for GRUNDFOS-PUMP. The normal material
combination include SIC/SIC/viton/machined ss304,TC/TC/VITON/machined ss304 and SIC/
SIC/VITON/SS304. we also can make changes as customers'requirement or totally design a
new type of mechanical seal to meet clients'needs.

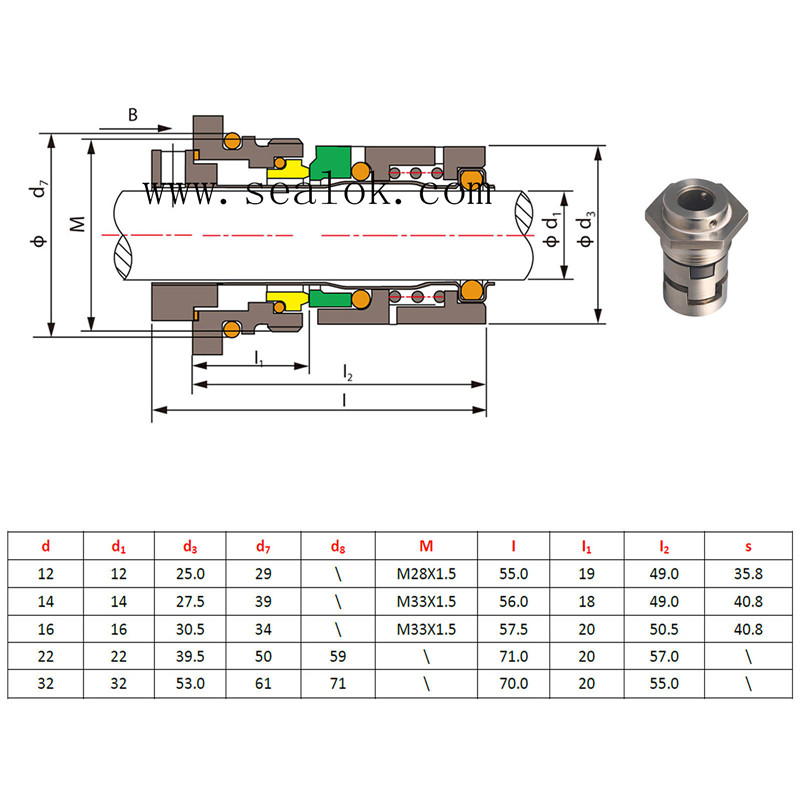

GLF CR
Operating Limits:
Pressure: ≤1.0MPa
Speed: ≤10m/s
Temperature: -30℃~+180℃
Rotary Ring (SiC/TC)
Stationary Ring (SiC/TC)
Secondary Seal (NBR/VITON)
Spring &Other Parts (SUS304/SUS316)
These mechanical seals are used for stainless steel vertical multistage centrifugal pumps.
They are suitable for use in Grundfos pumps:
CR1 / CR3 / CR5 / CR10 / CR15 / CR20 / CR32 / CR45 / CR64 / CR90 water pumps, O-ring assembly type
CRN1 / CRN3 / CRN5 / CRN10 / CRN15 / CRN20 / CRN32 / CRN45 / CRN64 / CRN90 water pumps, O-ring assembly type
