SLK5610 Single & Dual Cartridge Seal
Type ：  SLK5610
Temperature：  T: -30℃～+205℃
Technical parameters：  Yes
Pressure force：  P≤2.1MPa
Line rate：  Vg≤25m/s
Materials：  Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Secondary Seal (VlTON/Encapsulated Ring/PTFE)

Order Hotline：0086-512-58728158

SLK5610 Single & Dual Cartridge Seal(replace John crane 5610 )

Operating Limits:
Pressure:<2.1MPa (shaft diameter≤75mm)
<1.3MPa (shaft diameter>75mm)
Speed:≤25m/s
Temperature:-30℃~+205℃

Rotary Ring (SiC/Carbon/TC)
Stationary Ring (SiC/TC)
Secondary Seal (VlTON/Encapsulated Ring/PTFE)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)

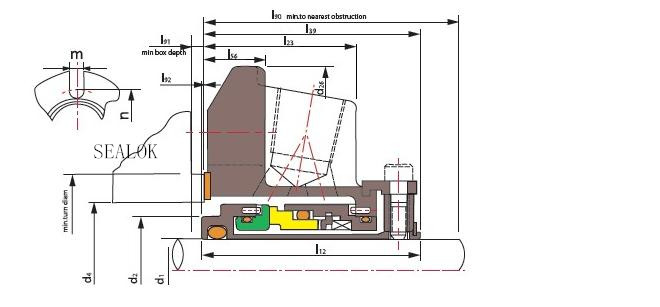

d1
(mm)

d2

d4

d26

l12

l23

l39

l56

l90

l91

l92

m

n

min

max

25

34.9

36.7

48.0

101.6

50.5

34.4

49.6

13.5

50.8

4.0

0.9

13.3

71.2

28

38.1

\

51.2

104.8

52.4

36.7

52.4

13.5

54.0

3.2

\

13.3

74.5

30

40.0

\

56.5

108.0

52.4

36.7

52.4

13.5

54.0

3.2

\

13.3

79.9

32

41.3

\

58.3

108.0

52.4

36.7

52.4

13.5

54.0

3.2

\

13.3

81.6

33

44.5

\

61.5

111.1

52.4

36.7

52.4

13.5

54.0

3.2

\

13.3

84.8

35

44.5

\

61.5

111.1

52.4

36.7

52.4

13.5

54.0

3.2

\

13.3

84.8

38

49.2

51.0

68.1

123.8

54.8

37.8

54.0

15.1

55.5

4.0

0.8

13.3

91.4

40

52.4

54.2

71.4

127.0

54.8

37.8

54.0

15.1

55.5

4.0

0.8

14.3

95.7

43

55.1

56.9

74.1

133.4

54.8

37.8

54.0

15.1

55.5

4.0

0.8

14.3

98.4

45

55.1

56.9

74.1

133.4

54.8

37.8

54.0

15.1

55.5

4.0

0.8

14.3

98.4

48

58.7

60.5

74.1

133.4

54.8

37.8

54.0

15.1

55.5

4.0

0.8

14.3

98.4

50

61.9

63.7

76.6

139.7

60.3

40.7

58.7

27.0

60.3

4.7

1.6

14.3

101.6

53

65.1

66.9

85.3

148.8

60.3

40.7

58.7

15.1

60.3

4.7

1.6

17.4

113.5

55

66.7

75.0

85.3

148.8

60.3

40.7

58.7

15.1

60.3

4.7

1.6

17.4

113.5

58

68.2

70.0

88.5

165.1

60.3

40.7

58.7

15.1

60.3

4.7

1.6

17.4

116.0

60

71.4

73.2

91,7

165,1

63.1

43.6

62.6

15.9

64.2

3.6

1.6

17.4

119.9

63

77.8

\

98.8

171.5

63.1

43.6

65.1

15.9

66.7

3.2

0.5

17.4

127.0

65

77.8

\

98.8

171.5

63.1

43.6

65.1

15.9

66.7

3.2

\

17.4

127.0

68

84.1

\

103.2

171.5

63.5

41.3

63.5

15.9

65.1

3.2

\

17.4

131.3

70

84.1

\

103.2

171.5

63.5

41.3

63.5

15.9

65.1

3.2

\

17.4

131.3

75

92.1

\

113.5

196.9

63.5

45.4

65.1

17.4

66.7

3.2

1.36

20.6

145.3

80

95.3

97.9

116.8

196.9

65.1

40.5

63.8

\

66.9

4.5

\

20.6

148.4

85

101.6

104.8

123.2

206.4

65.1

40.5

65.1

\

68.3

3.2

\

20.1

154.8

90

107.1

110.3

129.5

212.7

65.1

40.5

65.1

\

68.3

3.2

\

17.4

158.8

95

110.3

113.5

132.1

222.3

65.1

40.5

65.1

\

68.3

3.2

\

17.4

172.0

100

116.7

119.8

139.7

228.6

65.1

40.5

65.1

\

68.3

3.2

\

20.6

171.7

105

119.8

123.0

142.9

228.6

65.1

40.5

65.1

\

68.3

3.2

\

20.6

174.9

110

129.4

132.5

152.4

241.3

65.1

40.5

65.1

\

68.3

3.2

\

20.6

184.4

115

129.4

132.5

152.4

241.3

65.1

40.5

65.1

\

68.3

3.2

\

20.6

184.4

120

135.7

138.9

160.4

263.5

65.1

40.5

65.1

\

68.3

3.2

\

20.6

192.4

125

148.4

151.6

184.4

304.8

75.0

44.4

77.3

\

80.5

3.2

\

20.6

254.0

130

154.8

157.9

190.8

311.2

75.0

44.4

77.3

\

80.5

3.2

\

20.6

260.4

135

161.1

164.3

203.2

322.3

75.0

44.4

77.3

\

80.5

3.2

\

23.8

266.7

140

161.1

164.3

203.2

322.3

75.0

44.4

77.3

\

80.5

3.2

\

23.8

266.7


d1
(inches)

d2

d4

d26

l12

l23

l39

l56

l90

l91

l92

m

n

min

max

1.000

1.375

1.445

1.889

4.000

1.989

1.353

1.954

0,531

2.000

0.160

0.035

0.525

2.805

1.125

1.500

*

2.015

4.125

2.062

1.446

2.062

0.531

2.125

0.125

*

0.525

2.933

1.250

1.625

*

2.294

4.250

2.062

1.446

2.062

0.531

2.125

0.125

*

0.525

3.213

1.375

1.750

*

2.421

4.375

2.062

1.446

2.062

0.531

2.125

0.125

*

0.525

3.338

1.500

1.937

2.007

2.680

4.875

2.156

1.487

2.125

0.593

2.187

0.156

0.031

0.525

3.599

1.625

2.062

2.132

2.812

5.000

2.156

1.487

2.125

0.593

2.187

0.156

0.031

0.562

3.766

1.750

2.170

2.240

2.918

5.250

2.156

1.487

2.125

0.593

2.187

0.156

0.031

0.562

3.875

1.875

2.312

2.382

2.918

5.250

2.156

1.487

2.125

0.593

2.187

0.156

0.031

0.562

3.875

2.000

2.437

2.507

3.015

5.500

2.375

1.601

2.312

1.063

2.375

0.187

0.062

0.562

4.000

2.125

2.562

2.632

3.360

5.859

2.375

1.601

2.312

0.593

2.375

0.187

0.062

0.687

4.469

2.250

2.687

2.757

3.485

6.500

2.375

1.601

2.312

0.593

2.375

0.187

0.062

0.687

4.566

2.375

2.812

2.882

3.610

6.500

2.484

1.717

2.466

0.625

2.528

0.143

0.018

0.687

4.719

2.500

3.062

*

3.891

6.750

2.484

1.717

2.562

0.625

2.625

0.125

*

0.687

5.000

2.625

3.312

*

4.062

6.750

2.500

1.625

2.500

0.625

2.562

0.125

*

0.687

5.170

2.750

3.312

*

4.062

6.750

2.500

1.625

2.500

0.625

2.562

0.125

*

0.687

5.170

2.875

3.375

*

4.186

7.000

2.500

1.725

2.500

0.625

2.562

0.125

*

0.687

5.312

3.000

3.625

*

4.469

7.750

2.500

1.787

2.562

0.685

2.625

0.125

*

0.812

5.720

3.125

3.750

3.853

4.600

7.875

2.562

1.593

2.562

**

2.687

0.125

*

0.812

5.845

3.250

3.750

3.853

4.600

7.437

2.562

1.593

2.510

**

2.635

0.177

0.052

0.812

5.845

3.375

4.000

4.125

4.850

8.125

2.562

1.593

2.562

**

2.687

0.125

*

0.812

6.095

3.500

4.125

4.250

4.975

8.250

2.562

1.593

2.562

**

2.687

0.125

*

0.812

6.220

3.625

4.218

4.343

5.100

8.375

2.562

1.593

2.562

**

2.687

0.125

*

0.687

6.250

3.750

4.343

4.468

5.199

8.750

2.562

1.593

2.562

**

2.687

0.125

*

0.687

6.770

3.875

4.468

4.593

5.375

8.750

2.562

1.593

2.562

**

2.687

0.125

*

0.812

6.636

4.000

4.593

4.718

5.500

9.000

2.562

1.593

2.562

**

2.687

0.125

*

0.812

6.761

4.125

4.718

4.843

5.625

9.000

2.562

1.593

2.562

**

2.687

0.125

*

0.812

6.886

4.250

4.843

4.968

5.750

9.250

2.562

1.593

2.562

**

2.687

0.125

*

0.812

7.011

4.500

5.093

5.218

6.000

9.500

2.562

1.593

2.562

**

2.687

0.125

*

0.812

7.261

4.750

5.343

5.468

6.313

10.375

2.562

1.593

2.562

**

2.687

0.125

*

0.812

7.574

5.000

5.843

5.968

7.260

12.000

2.953

1.749

3.043

**

3.168

0.125

*

0.812

10.000

5.250

6.093

6.218

7.510

12.250

2.953

1.749

3.043

**

3.168

0.125

*

0.812

10.250

5.500

6.343

6.468

8.000

12.687

2.953

1.749

3.043

**

3.168

0,125


0.937

10.500
