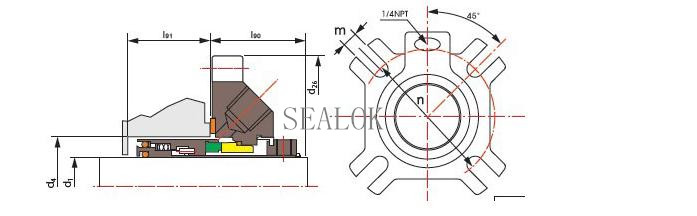

SLK4610 Single & Dual Cartridge Seal(replace John crane 4610)
d1 | d4 | d26 | l90 | I91 | n | m | ||
min | max | min | max | |||||
24 | 40.0 | 49.2 | 104.8 | 36.0 | 32 | 66,7 | 95,3 | 11.1 |
25 | 41.0 | 49.2 | 104.8 | 36.0 | 32 | 66.7 | 95.3 | 11.1 |
28 | 44.0 | 52.4 | 108.0 | 36.0 | 32 | 69.9 | 98.4 | 11.1 |
30 | 46.0 | 55.6 | 111.0 | 36.0 | 32 | 73,0 | 101.6 | 11.1 |
32 | 47.6 | 55.6 | 111.0 | 36.0 | 32 | 73.0 | 101.6 | 11.1 |
33 | 49.0 | 58.7 | 114.3 | 36.0 | 32 | 73.0 | 101.6 | 11.1 |
35 | 50.8 | 58.7 | 114.3 | 36.0 | 32 | 77.8 | 104.8 | 11.1 |
38 | 57.2 | 63.5 | 127.0 | 37.0 | 33 | 87.3 | 114.3 | 14.3 |
40 | 60.0 | 63.5 | 127.0 | 37.0 | 33 | 87.3 | 114.3 | 14.3 |
43 | 63.0 | 66.7 | 133.4 | 37.0 | 33 | 90,5 | 120.7 | 14.3 |
45 | 63.5 | 66.7 | 133.4 | 37.0 | 33 | 90.5 | 120.7 | 14.3 |
48 | 66.7 | 76.2 | 139.7 | 37.0 | 33 | 98.4 | 127.0 | 14.3 |
50 | 69.8 | 76.2 | 139.7 | 37.0 | 33 | 98.4 | 127.0 | 14.3 |
53 | 73.0 | 84.1 | 146.0 | 37.0 | 33 | 111.1 | 130.2 | 17.5 |
55 | 73.0 | 84.1 | 146.0 | 37.0 | 33 | 111.1 | 130.2 | 17.5 |
58 | 79.4 | 90.5 | 152.4 | 37.0 | 33 | 117.5 | 136.5 | 17.5 |
60 | 79.4 | 90.5 | 152.4 | 37.0 | 33 | 117.5 | 136.5 | 17.5 |
63 | 82.6 | 98.4 | 158.8 | 37.0 | 36 | 123.8 | 142.9 | 17.5 |
65 | 88.9 | 98.4 | 158.8 | 37.5 | 36 | 123.8 | 142.9 | 17.5 |
70 | 95.0 | 98.4 | 158.8 | 37.5 | 36 | 123.8 | 142.9 | 17.5 |
