SLK5611Q Single & Dual Cartridge Seal

Type ：	SLK5611Q
Temperature：	T: -30℃～+205℃
Technical parameters：	Yes
Pressure force：	P≤2.8MPa
Line rate：	Vg≤25m/s
Materials：	Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Secondary Seal (VlTON/Encapsulated Ring/PTFE)

Order Hotline：0086-512-58728158

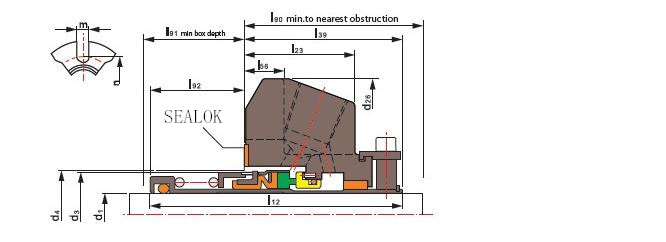

SLK5611Q Single & Dual Cartridge Seal(replace John crane 5611Q )

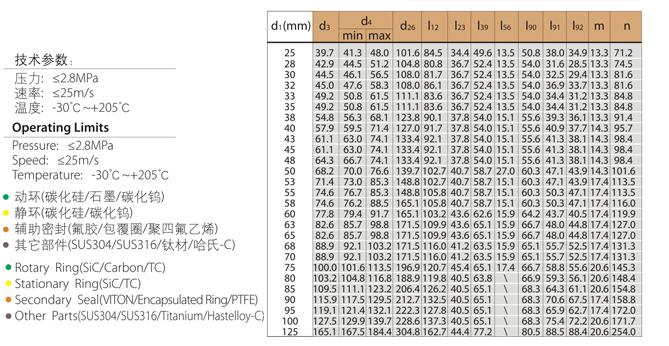

Operating Limits:

Pressure: ≤2.8MPa

Speed: ≤25m/s

Temperature: -30℃~+205℃

Rotary Ring (SiC/Carbon/TC)

Stationary Ring (SiC/TC)

Secondary Seal (VlTON/Encapsulated Ring/PTFE)

Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
