SLKC01 Metal Bellows Seal

Type ：	SLKC01
Temperature：	-30℃～+420℃
Technical parameters：	Yes
Pressure force：	≤2MPa
Line rate：	≤25m/s
Materials：	rotary Ring (SiC/Carbon/TC) Stationary Ring(SiC/TC) Secondary Seal (Flexible Carbon)

Order Hotline：0086-512-58728158

SLKC01 Metal Bellows Seal(replace CHESTERTON 886HT)

Operating Limits:

Pressure: ≤2MPa

Speed: ≤20m/s

Temperature: -73℃~+427℃

rotary Ring (SiC/Carbon/TC)

Stationary Ring(SiC/TC)

Secondary Seal (Flexible Carbon)

Metal Bellows (SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/AIIoy-20)

Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)

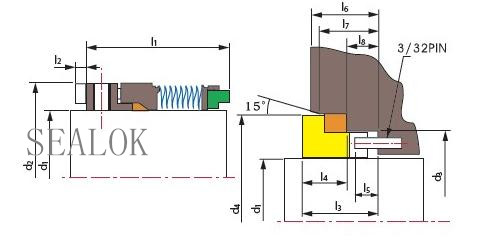

d₁ (inches)	d₂	l₁	l₂		d₁ (mm)	d₂	l₁	l₂
1.000	1.562	1.687	0.125		25	39.7	42.8	3.2
1.125	1.687	1.562	0.125		28	42.8	39.7	3.2
1.250	1.812	1.562	0.125		30	46.0	42.8	3.2
1.375	1.937	1.750	0.125		32	46.0	42.8	3.2
1.500	2.170	1.750	0.164		35	49.2	44.5	3.2
1.625	2.295	1.750	0.164		38	55.1	44.5	4.2
1.750	2.420	1.750	0.164		40	58.3	44.5	4.2
1.875	2.545	1.750	0.164		42	61.5	44.5	4.2
2.000	2.670	1.750	0.164		45	62.3	44.5	4.2
2.125	2.795	1.750	0.164		48	64.6	44.5	4.2
2.250	2.920	1.875	0.164		50	67.8	44.5	4.2
2.375	3.045	1.875	0.164		55	74.2	47.6	4.2
2.500	3.187	1.875	0.164		60	77.3	47.6	4.2
2.625	3.312	1.875	0.164		65	84.1	47.6	4.2

d₁ (inches)	d₄	l₃	d₃	l₆	l₇	l₈	l₄	l₅
1.000	1.625	0.437	1.384	0.551	0.390	0.240	0.261	0.125
1.125	1.750	0.437	1.509	0.551	0.390	0.240	0.261	0.125
1.250	1.875	0.437	1.634	0.551	0.390	0.240	0.261	0.125
1.375	2.000	0.437	1.759	0.551	0.390	0.240	0.261	0.125
1.500	2.125	0.437	1.884	0.551	0.390	0.240	0.261	0.125
1.625	2.375	0.500	2.134	0.592	0.431	0.251	0.314	0.125
1.750	2.500	0.500	2.259	0.592	0.431	0.251	0.314	0.125
1.875	2.625	0.500	2.384	0.592	0.431	0.251	0.314	0.125
2.000	2.750	0.500	2.509	0.592	0.431	0.251	0.314	0.125
2.125	3.000	0.562	2.759	0.641	0.480	0.300	0.346	0.156
2.250	3.125	0.562	2.884	0.641	0.480	0.300	0.346	0.156
2.375	3.250	0.562	3.009	0.641	0.480	0.300	0.346	0.156
2.500	3.375	0.562	3.134	0.641	0.480	0.300	0.346	0.156
2.625	3.375	0.625	3.134	0.682	0.521	0.341	0.379	0.170

d₁ (mm)	d₄	l₃	d₃	l₆	l₇	l₈	l₄	l₅
1.000	1.625	0.437	1.384	0.551	0.390	0.240	0.261	0.125
1.125	1.750	0.437	1.509	0.551	0.390	0.240	0.261	0.125
1.250	1.875	0.437	1.634	0.551	0.390	0.240	0.261	0.125
1.375	2.000	0.437	1.759	0.551	0.390	0.240	0.261	0.125
1.500	2.125	0.437	1.884	0.551	0.390	0.240	0.261	0.125
1.625	2.375	0.500	2.134	0.592	0.431	0.251	0.314	0.125
1.750	2.500	0.500	2.259	0.592	0.431	0.251	0.314	0.125
1.875	2.625	0.500	2.384	0.592	0.431	0.251	0.314	0.125
2.000	2.750	0.500	2.509	0.592	0.431	0.251	0.314	0.125
2.125	3.000	0.562	2.759	0.641	0.480	0.300	0.346	0.156
2.250	3.125	0.562	2.884	0.641	0.480	0.300	0.346	0.156
2.375	3.250	0.562	3.009	0.641	0.480	0.300	0.346	0.156
2.500	3.375	0.562	3.134	0.641	0.480	0.300	0.346	0.156
2.625	3.375	0.625	3.134	0.682	0.521	0.341	0.379	0.170
