SLK103 mechanical seal
Operating limits
Specification : 20-120 mm
Pressure : ≤0.8Mpa
Temperatuee : -20-220℃
Lieear speed : ≤ 15m/s
Axial movement : ±1.5 mm

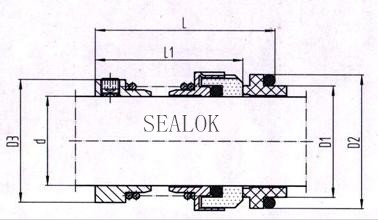

103(103) Parameters ： mm | |||||
d | D3 | D1 | D2 | L | L1 |
20 | 37 | 30 | 40 | 63 | 44 |
22 | 39 | 32 | 42 | 67 | 48 |
25 | 42 | 35 | 45 | 67 | 48 |
28 | 45 | 38 | 48 | 69 | 50 |
30 | 52 | 40 | 50 | 75 | 56 |
35 | 57 | 45 | 55 | 79 | 60 |
40 | 62 | 50 | 60 | 83 | 64 |
45 | 67 | 55 | 65 | 90 | 71 |
50 | 72 | 60 | 70 | 94 | 75 |
55 | 77 | 65 | 75 | 96 | 77 |
60 | 82 | 70 | 80 | 96 | 77 |
65 | 92 | 80 | 90 | 111 | 89 |
70 | 97 | 85 | 97 | 116 | 91 |
75 | 102 | 90 | 102 | 116 | 91 |
80 | 107 | 95 | 107 | 123 | 98 |
85 | 112 | 100 | 112 | 125 | 100 |
90 | 117 | 105 | 117 | 126 | 101 |
95 | 122 | 110 | 122 | 126 | 101 |
100 | 127 | 115 | 127 | 126 | 101 |
110 | 141 | 130 | 142 | 153 | 126 |
120 | 151 | 140 | 152 | 153 | 126 |
