108U Machined Mechanical Seal

Type ：	108U
Temperature：	T: -20℃～+220℃
Technical parameters：	Yes
Pressure force：	P≤0.8MPa
Line rate：	Vg≤15m/s
Materials：	Rotary Ring (Carbon/SiC/TC) Stationary Ring (99%Ceramic/ SiC /TC) Secondary Seal (NBR/VITON/Encapsulated Ring)

Order Hotline：0086-512-58728158

108U Machined Mechanical Seal
Operating limits
Specification    : 35-85 mm
Pressure         : ≤0.8Mpa
Temperatuee    : -20-220℃
Lieear speed    : ≤ 15m/s
Axial movement : ±1.5 mm

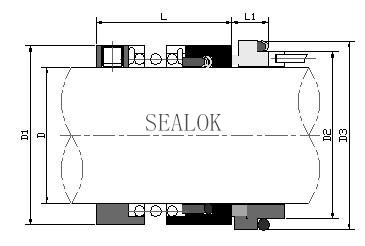

108U Parameters（mm)

D	D1	D2	D3	L1	L
35	49	44	50	13	42
40	56	51	58	13	42
45	61	55	63	13	47
50	66	62	70	13	47
55	71	67	75	15	55
60	80	72	80	15	55
65	85	77	85	15	65
70	90	83	92	15	65
75	99	87	97	15	65
80	104	95	105	17	73
85	109	100	110	17	73
