ST Machined Mechanical Seal
| Type ： |
ST |
| Temperature： |
T: -30℃～+200℃ |
| Technical parameters： |
Yes |
| Pressure force： |
P≤1.2MPa |
| Line rate： |
Vg≤20m/s |
| Materials： |
Rotary Ring (Carbon/ SiC /TC) Secondary Seal (VITON/PTFE/Encapsulated Ring) |
Order Hotline：0086-512-58728158

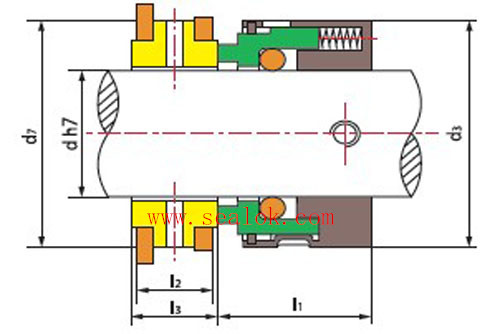

ST Machined Mechanical Seal
Our mechanical seal model ST belongs to machined mechanical seal and is widely used for industrial pumps. The normal material combination include resin carbon/SIC/viton/ss316 , SIC/SIC/VITON/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
ST
Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤20m/s
Temperature: -30℃~+200℃
Rotary Ring (Carbon/ SiC /TC)
Secondary Seal (VITON/PTFE/Encapsulated Ring)
Spring＆Other Parts (SUS304/SUS316)
