SLK X Machined Mechanical Seal

Type ：	SLK X
Temperature：	T: -30℃～+200℃
Technical parameters：	Yes
Pressure force：	P≤1MPa
Line rate：	Vg≤5m/s
Materials：	Rotary Ring (SiC/TC) Stationary Ring (SiC / TC) O-Ring (NBR/EPDM/VITON)

Order Hotline：0086-512-58728158

SLK X Machined Mechanical Seal (for FLYGT PUMP)

Our Mechanical seal model X can replace ITT seals,which is widely used for FLYGT PUMP and mining industry.
The normal material combination include SIC/SIC/nbr/ss304,TC/TC/NBR/SS304,TC/TC/VITON/SS316 and so on.
Our seal structure is totally the same as ITT original.we also can make changes as customers'requirement or totally
design a new type of mechanical seal to meet clients'needs.

SLK XMachined Mechanical Seal

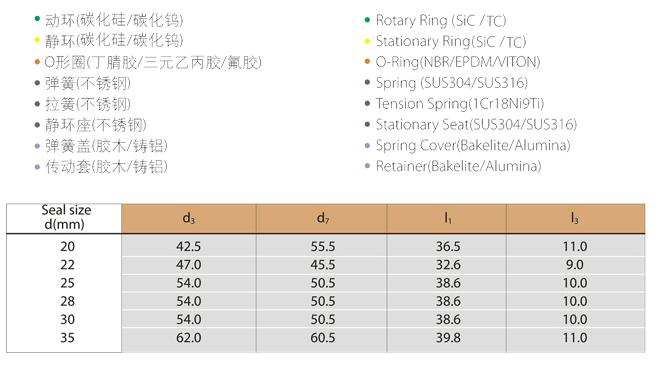

Operating Limits:

Pressure: ≤1MPa

Speed: ≤5 m/s

Temperature: -30℃~+200℃

Rotary Ring (SiC/TC)

Stationary Ring (SiC / TC)

O-Ring (NBR/EPDM/VITON)

Spring (SUS304/SUS316)

Tension Spring (SUS321)

Stationary Seat (SUS304/SUS316)

Spring Cover (Bakelite/Alumina)

Retainer (Bakelite/Alumina)
