SKLG3 GRUNDFOS-PUMP Seal
Our Mechanical seal model SLKG3 is widely used for GRUNDFOS-PUMP. The normal material
combination include SIC/SIC/viton/machined ss304,TC/TC/VITON/machined ss304 and SIC/
SIC/VITON/SS304. we also can make changes as customers'requirement or totally design a
new type of mechanical seal to meet clients'needs.

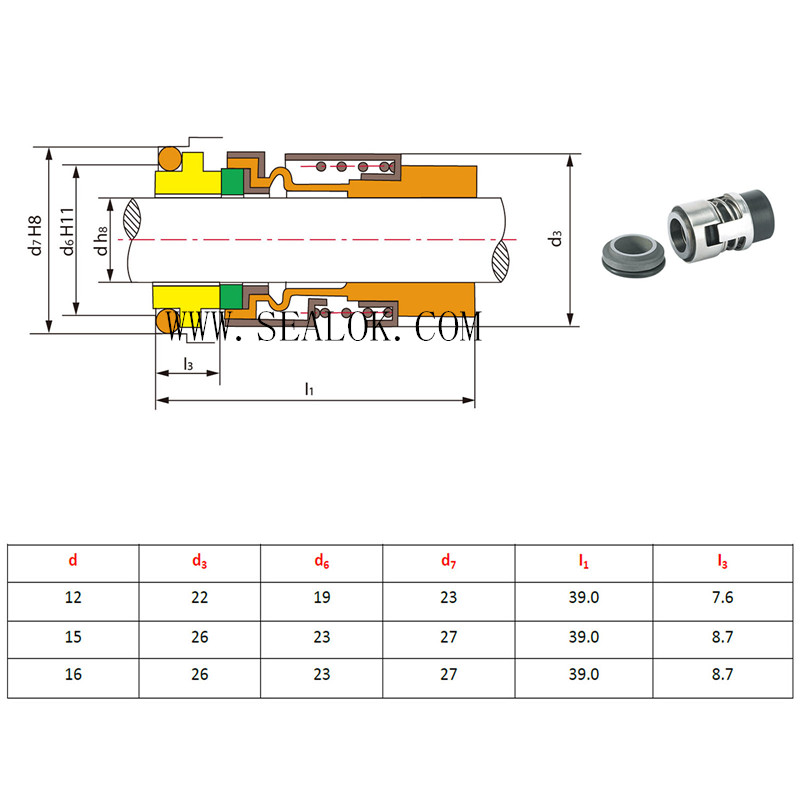

SLKG3
Operating Limits:
Pressure: ≤1.0MPa
Speed: ≤10m/s
Temperature: -30℃~+180℃
Rotary Ring (SiC/TC)
Stationary Ring (SiC/TC)
Secondary Seal (NBR/VITON)
Spring &Other Parts (SUS304/SUS316)
Note: Max Temperature / pressure / speed indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Sealok if in doubt.
