SLK156 Single-Spring Mechanical Seal

Type ：	SLK156
Temperature：
Technical parameters：	Yes
Pressure force：
Line rate：
Materials：	Rotary Ring(Plastic Carbon/Carbon/Sic/TC) Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON)

Order Hotline：0086-512-58728158

SLK156 Single-Spring Mechanical Seal
Replace AESSEAL (replace NOK EAGLE EA100)

Operating Limits：

Pressure: ≤0.5MPa

Speed: ≤10m/s

Temperature: -30℃～+200℃

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)

Stationary Ring(Ceramic/Sic/Tc)

Secondary Seal(nbr/Epdm/VITON)

Spring & Other Parts(Sus304/Sus316)

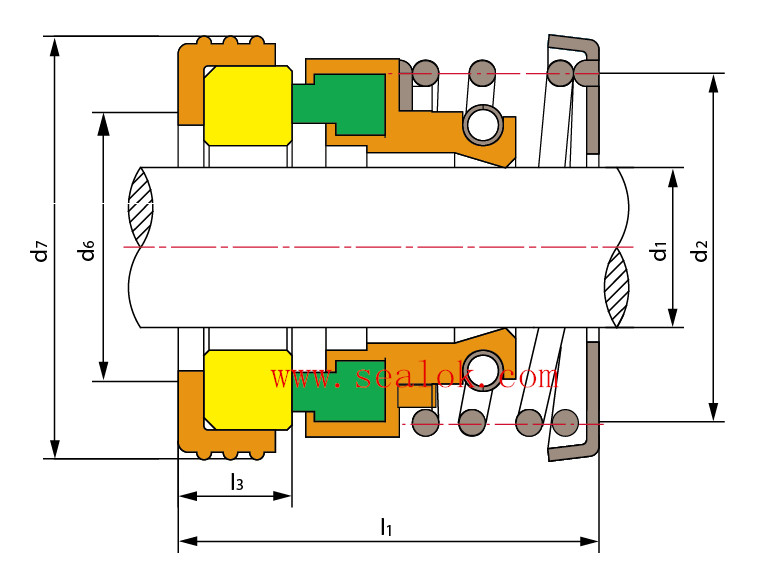

Model	d₁ (mm)	d₂	d₆	d₇	l₁	l₃
156-8	8	16	13	18/21	18	5/6
156-9	9	18	16	21	23	6
156-10	10	20	16	20/22/24	23	6.5
156-11	11	20	16	24	23	7
156-12	12	22.5	17	26	24	7
156-13	13	22.5	17	26	24	7
156-14	14	24.5	21	28/30	25	7
156-15	15	24.5	21	28/30	25	7
156-16	16	28.5	22	32	27	8
156-17	17	28.5	22	32	27	8
156-18	18	31.5	25	35	29	8
156-19	19	31.5	25	35	29	8

Model	d₁ (mm)	d₂	d₆	d₇	l₁	l₃
156-20	20	31.5	27	38	31	8
156-22	22	34.5	29	40	32	8
156-25	25	37.5	32	44	33	9
156-28	28	40.5	34	46	34	9
156-30	30	44.5	38	50	35	9
156-32	32	47.5	40	54	37	9
156-35	35	50.5	44	58	40	10
156-38	38	55	46	60	42	10
156-40	40	56.5	48	64	43	10
156-45	45	61.5	52	66	45	10
156-50	50	66.5	58	72	47	10
