SLK XA Machined Mechanical Seal
Type :  SLK XA
Temperature:  T: -30℃~+200℃
Technical parameters:  Yes
Pressure force:  P≤1.2MPa
Line rate:  Vg≤10m/s
Materials:  MG13 Machined Mechanical Seal (replace AESSEAL B02,BURGMANN MG1,FLOWSERVE 190,MTU FG1;for Hecker HN 410SU) MG12(replace AESSEAL B012,BURGMANN MG12,FLOWSERVE 192, MTU FG2;for Hecker HN 410KU)

Order Hotline:0086-512-58728158

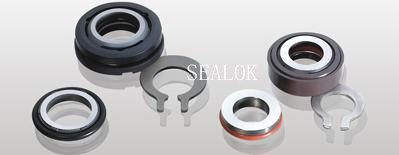

SLK XA  Machined Mechanical Seal (for FLYGT PUMP)


Our mechanical seal model XA can replace ITT seals,which is widely used for FLYGT PUMP and  mining industry.The normal material combination include resin carbon/ceramice/nbr/ss304,TC/TC/NBR/SS304,TC/TC/VITON/SS316 and so on. Our seal structure is totally the same as ITT original.we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

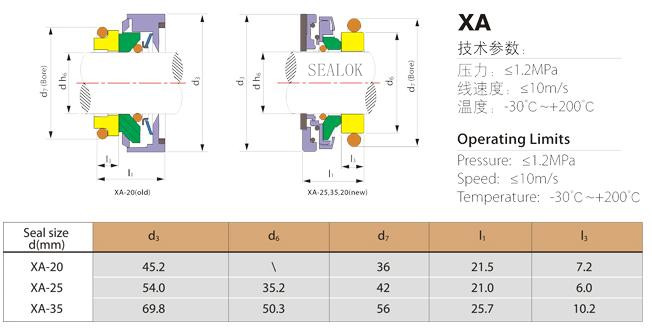

SLK XA

Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~+200℃
