XD Machined Mechanical Seal
Type : |
XD |
Temperature: |
T: -30℃~+200℃ |
Technical parameters: |
Yes |
Pressure force: |
P≤1.2MPa |
Line rate: |
≤10米/秒 |
Materials: |
Rotary Ring(Plastic Carbon/Carbon/Sic/TC) Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON) |
Order Hotline:0086-512-58728158
XD Machined Mechanical Seal (for FLYGT PUMP)
Our Mechanical seal model XD can replace ITT seals,which is widely used for FLYGT PUMP and mining industry.The normal material combination include
SIC/SIC/NBR/SS304,TC/TC/VITON/SS304/2CR13 ,TC/TC/NBR/SS304 and so on. Our seal structure is totally the same as ITT original.we also can make
changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

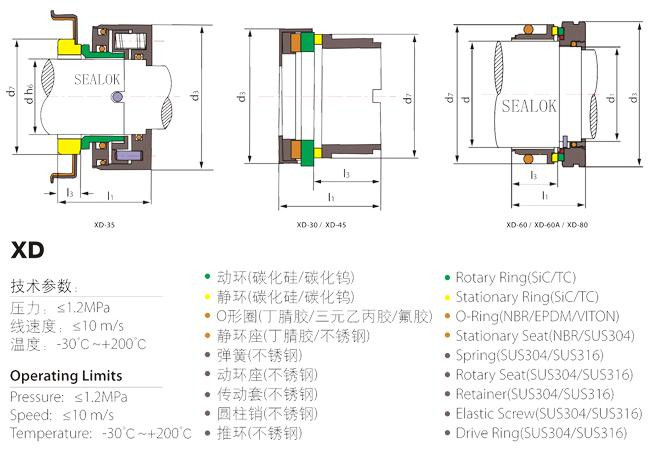

XD
Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤10 m/s
Temperature: -30℃~+200℃
Rotary Ring (SiC/TC)
Stationary Ring (SiC/TC)
O-Ring (NBR/EPDM/VITON)
Stationary Seat (NBR/SUS304)
Other Parts (SUS304/SUS316)
