SLK5611 Single & Dual Cartridge Seal(replace John crane 5611 )

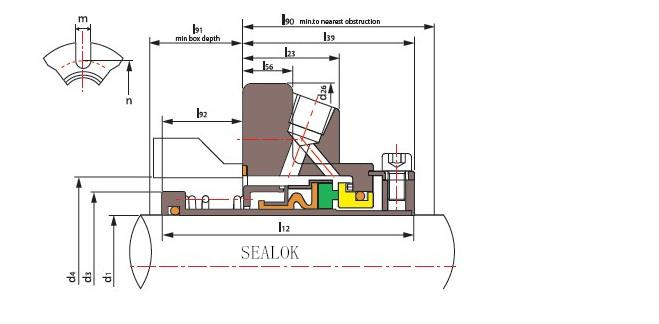

d1 | d3 | d4 | d26 | l12 | l13 | l23 | l39 | l90 | l91 | l92 | m | n | |
min | max | ||||||||||||
25 | 34.9 | 38.1 | 48.0 | 101.6 | 69.6 | 34.4 | 49.6 | 13.5 | 50.8 | 23.1 | 20.0 | 13.3 | 71.2 |
28 | 38.1 | 41.3 | 51.2 | 104.8 | 65.9 | 36.7 | 52.4 | 13.5 | 54.0 | 16.7 | 13.5 | 13.3 | 74.5 |
30 | 42.8 | 46.0 | 56.5 | 108.0 | 69.0 | 36.7 | 52.4 | 13.5 | 54.0 | 19.8 | 16.7 | 13.3 | 81.6 |
32 | 42.8 | 46.0 | 58.3 | 108.0 | 69.0 | 36.7 | 52.4 | 13.5 | 54,0 | 19.8 | 16.7 | 13.3 | 81.6 |
33 | 46.0 | 49.2 | 61.5 | 111.1 | 66.7 | 36.7 | 52.4 | 13.5 | 54.0 | 17.5 | 14.3 | 13.3 | 84.8 |
35 | 46.0 | 49.2 | 61.5 | 111.1 | 66.7 | 36.7 | 52.4 | 13.5 | 54.0 | 17.5 | 14.3 | 13.3 | 84.8 |
38 | 50.8 | 54.0 | 68.1 | 123.8 | 75.2 | 37.8 | 54.0 | 15.1 | 55.6 | 24.4 | 21.2 | 13.3 | 91.4 |
40 | 54.0 | 57.2 | 71.4 | 127.0 | 76.8 | 37.8 | 54.0 | 15.1 | 55.6 | 26.0 | 22.8 | 14.3 | 95.7 |
43 | 57.2 | 60.3 | 74.1 | 133.4 | 77.2 | 37.8 | 54.0 | 15.1 | 55.6 | 26.4 | 23.2 | 14.3 | 98.4 |
45 | 57.2 | 60.3 | 74.1 | 133.4 | 77.2 | 37.8 | 54.0 | 15.1 | 55.6 | 26.4 | 23.2 | 14.3 | 98.4 |
48 | 60.3 | 63.5 | 74.1 | 133.4 | 77.2 | 37.8 | 54.0 | 15.1 | 55.6 | 26.4 | 23.2 | 14.3 | 98.4 |
50 | 68.2 | 69.9 | 76.6 | 139.7 | 87.7 | 40.7 | 58.7 | 27.0 | 60.3 | 32.2 | 29.0 | 14.3 | 101.6 |
53 | 71.4 | 73.0 | 85.3 | 148.8 | 87.7 | 40.7 | 58.7 | 15.1 | 60.3 | 32.2 | 29.0 | 17.4 | 113.5 |
55 | 69.9 | 7B.0 | 85.3 | 148.8 | 90.9 | 40.7 | 58.7 | 15.1 | 60.3 | 35.4 | 32.2 | 17.4 | 113.5 |
58 | 69.9 | 75.0 | 88.5 | 165.1 | 90.9 | 40.7 | 58.7 | 15.1 | 60.3 | 35.4 | 32.2 | 17.4 | 116.0 |
60 | 77.8 | 79.4 | 91.7 | 165.1 | 88.1 | 43.6 | 62.6 | 15.9 | 64.2 | 28.6 | 25.5 | 17.4 | 119.9 |
63 | 82.6 | 85.7 | 98.8 | 171.5 | 97.3 | 43.6 | 65.1 | 15.9 | 66.7 | 35.4 | 32.2 | 17.4 | 127.0 |
65 | 82.6 | 85.7 | 98.8 | 171.5 | 97.3 | 43.6 | 65.1 | 15.9 | 66.7 | 35.4 | 32.2 | 17.4 | 127.0 |
68 | 88.9 | 92.1 | 103.2 | 171.5 | 101.0 | 41.2 | 63.5 | 15.9 | 65.1 | 40.7 | 37.5 | 17.4 | 131.3 |
70 | 88.9 | 92.1 | 103.2 | 171.5 | 101.0 | 41.2 | 63.5 | 17.4 | 65.1 | 40.7 | 37.5 | 17.4 | 131.3 |
75 | 100.0 | 101.6 | 113.5 | 196.9 | 106.0 | 45.4 | 65.1 | \ | 66.7 | 44.1 | 40.9 | 20.6 | 145.3 |
80 | 103.2 | 104.8 | 116.8 | 188.9 | 106.4 | 40.5 | 63.8 | \ | 66.9 | 45.8 | 42.6 | 20.6 | 148.5 |
85 | 109.5 | 111.1 | 123.2 | 206.4 | 111.1 | 40.5 | 65.1 | \ | 68.3 | 49.2 | 46.1 | 20.6 | 154.8 |
90 | 115.9 | 117.5 | 129.5 | 212.7 | 117.5 | 40.5 | 65.1 | \ | 68.3 | 55.6 | 52.4 | 17.4 | 158.8 |
95 | 117.7 | 120.0 | 132.1 | 222.3 | 112.7 | 40.5 | 65.1 | \ | 68.3 | 50.8 | 47.6 | 17.4 | 172.0 |
100 | 125.4 | 127.8 | 139.7 | 228.6 | 122.2 | 40.5 | 65.1 | \ | 68,3 | 60.3 | 57.2 | 20,6 | 171,7 |
125 | 165.1 | 167.5 | 184.4 | 304.8 | 146.0 | 41.4 | 77.3 | \ | 80.5 | 71.9 | 68.8 | 20.6 | 254.0 |
