124 Machined Mechanical Seal
Our mechanical seal model 124 belong to machined mechanical seal and is widely used for industrial pumps. The normal material combination include TC/Resin carbon/nbr/ss304, sic/resin carbon/nbr/ss304,sic/sic/nbr/ss304 and TC/TC/NBR/ss304 . we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

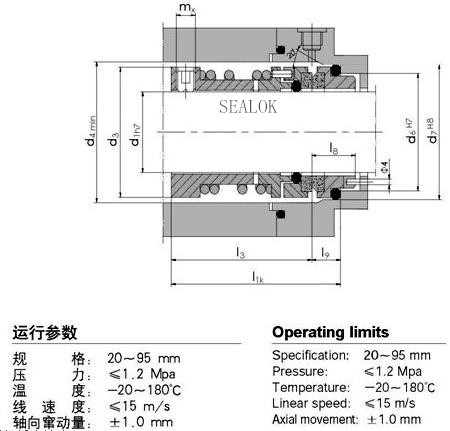

124 Machined mechanical seal
Operating Limits:
Pressure: 0~1.2MPa
Speed: ≤15m/s
Temperature: -20℃~+180℃
Rotary Ring (SiC/TC/Carbon)
Stationary Ring (Carbon/SiC/TC)
Secondary Seal (EPDM/VITON/PTFE)
Spring & Other Parts (SUS304/SUS316)
Design Features
A.Rotary direction is immobile. The springs can be assorted into right-hand or left-hand. The Spring rotating direction is determined by the direction of the shaft rotation.
