WB2 Machined Mechanical Seal
Type : |
WB2 |
Temperature: |
T: -20℃~+125℃ |
Technical parameters: |
Yes |
Pressure force: |
P≤0.35MPa |
Line rate: |
Vg≤10m/s |
Materials: |
Rotary Ring (Filled PTFE/SiC) Stationary Ring (99%Ceramic/SiC) Secondary SeaI (PTFE) |
Order Hotline:0086-512-58728158

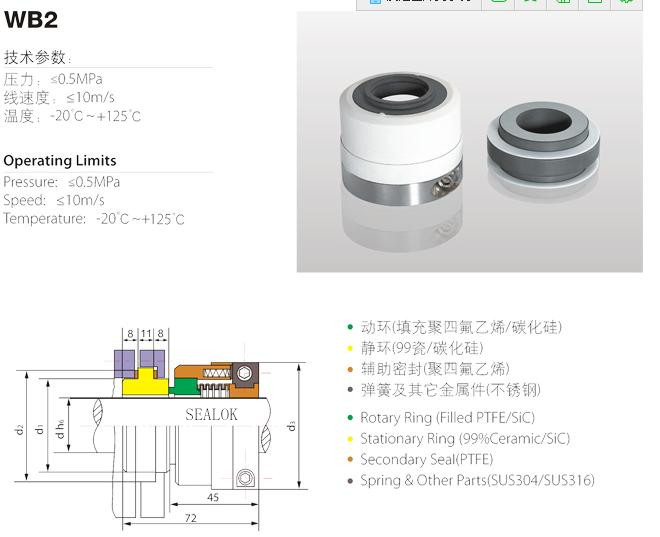

WB2 Machined Mechanical Seal
Our mechanical seal model WB2 belongs to machined mechanical seal and is widely used for industrial pumps. The normal material combination is sic/sic. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
WB2
Operating Limits:
Pressure: ≤0.5MPa
Speed: ≤10m/s
Temperature: -20℃~+125℃
Medium: Strong acids, strong oxidants, and other strong corrosive liquids. This does NOT apply to alkali, hydrofluoric acid, and solutions with impurities.
Rotary Ring (Filled PTFE/SiC)
Stationary Ring (99%Ceramic/SiC)
Secondary SeaI (PTFE)
Spring & Other Parts (SUS304/SUS316)
