AP  Machined Mechanical Seal

Our mechanical seal model AP  belong to machined mechanical seal and is widely used for industrial pumps.   The normal material combination is sic/sic/nbr/ss304. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
 AP

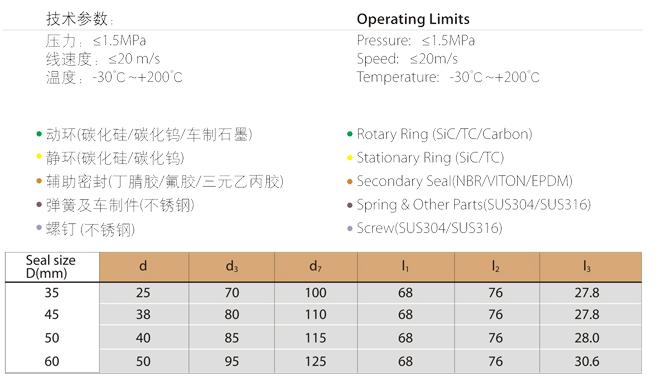

Operating Limits:
Pressure: ≤1.5MPa
Speed: ≤20m/s
Temperature: -30℃~+200℃

Rotary Ring (SiC/TC/Carbon)
Stationary Ring (SiC/TC)
Secondary SeaI (NBR/VITON/EPDM)
Spring & Other Parts (SUS304/SUS316)
Screw (SUS304/SUS316)
